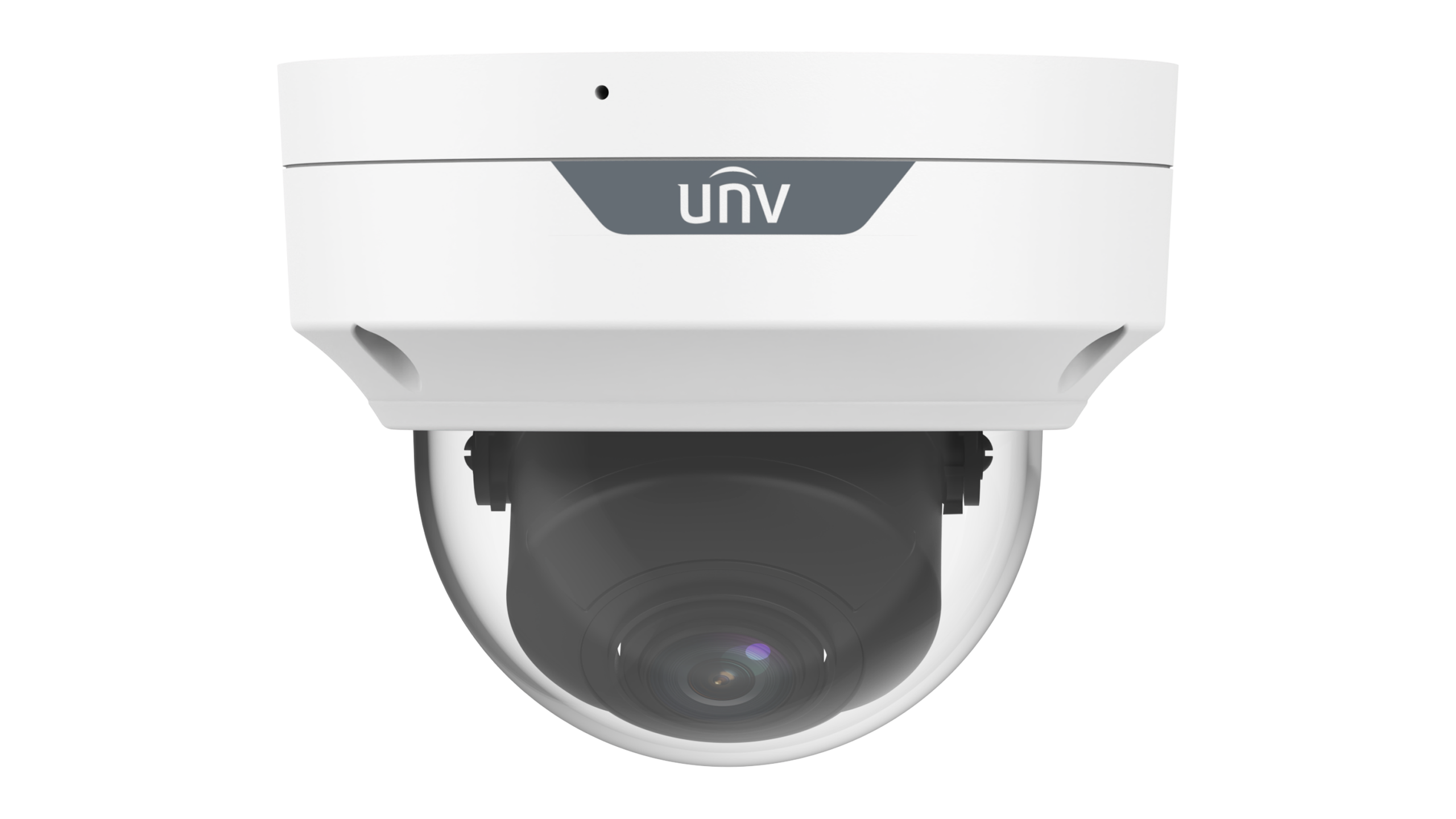

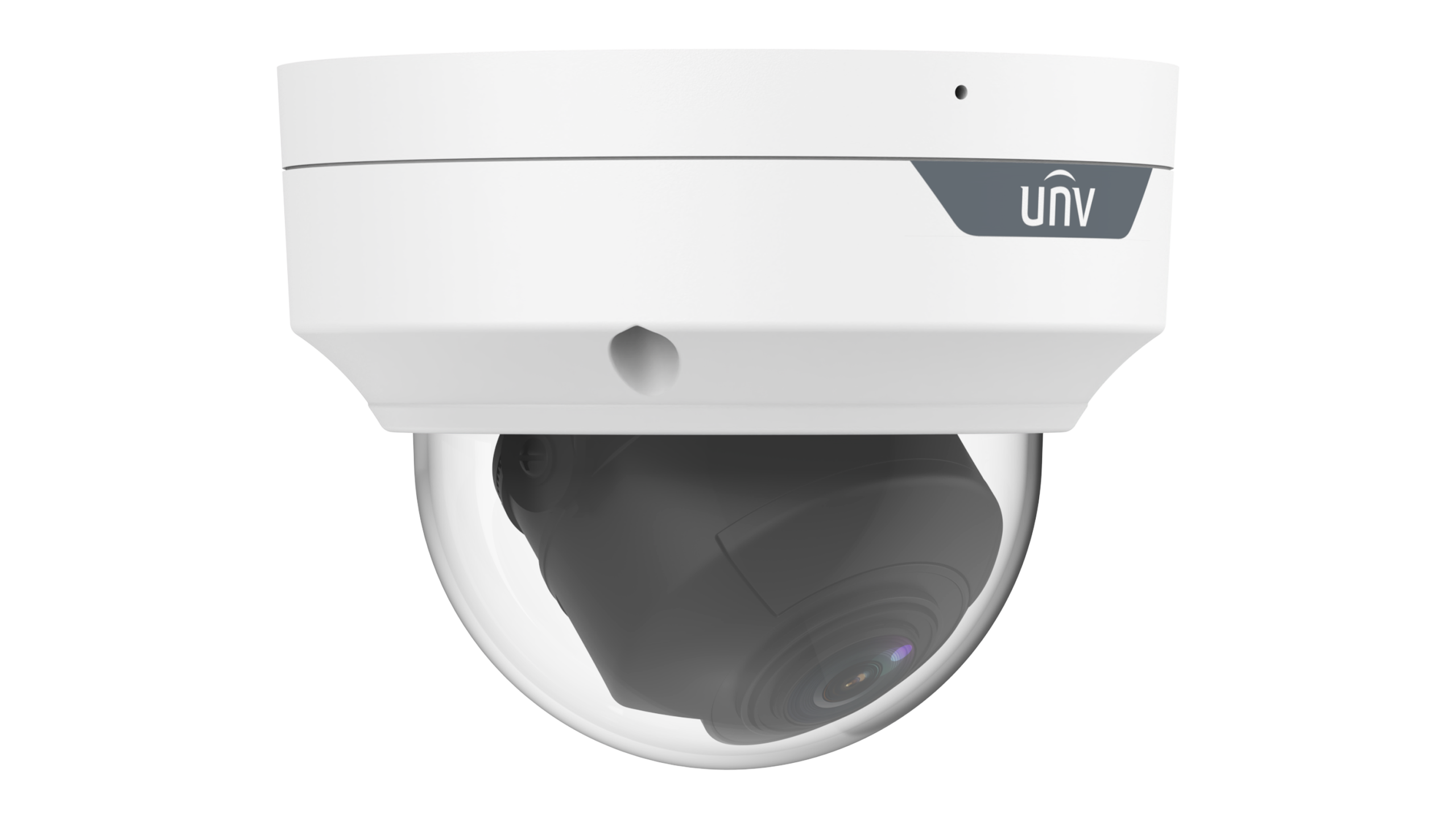

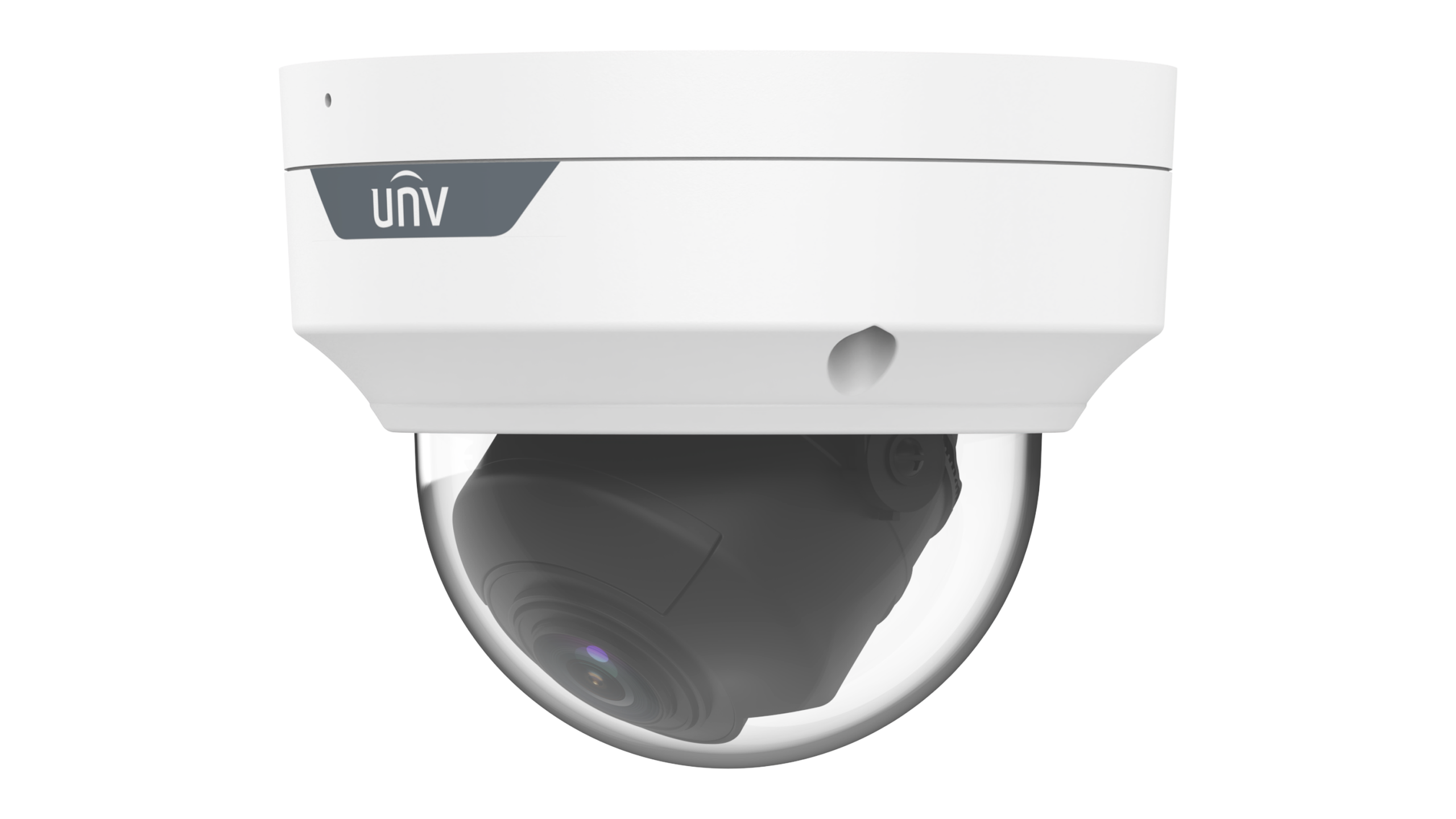

5MP VF IR Dome Network Camera

• High quality image with 4 MP, 1/2.7" CMOS sensor • 4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps • Ultra 265, H.265, H.264, MJPEG • Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection • Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles • Intelligent people flow counting and crowd density monitoring • 120 dB true WDR technology enables clear image in strong light scene • Supports 9:16 corridor mode • Built-in dual-mic • Smart IR, up to 80 m (262.5 ft) IR distance • MicroSD, up to 512 GB • IP67 protection

• Features • Optics • Built-in lens supports motorized zoom to adapt to different scenes and allows for easy installation. • Automatic gain control, white balance, and WDR for various light conditions. • Compression • Supports triple streams. • Advanced H.265 encoding technology improves compression efficiency. • Custom OSD allows various vehicle information to be overlaid on the video image. • Functions • Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries. • Supports capturing vehicle head only. • Supports plate allowlist and blocklist configuration. • Supports vehicle access control when connected to a barrier. • Supports Micro SD cards of up to 256GB. • Automatic network replenishment (ANR) allows to automatically store video to SD card in case of network disconnection. • Supports audio collection and intercom. • Network • Network auto-adaptability ensures smooth live video in relatively bad network conditions such as packet loss. • Supports SNMP. • Supports UNP for NAT traversal between public and private networks. • Supports integration with the third party via SDK or HTTP. • Network Security • Supports authorized user access by password. Weak password detection and account lock-up when failed login attempts reach the upper limit enhance password security. • Supports Web access via HTTPS. • RTSP authentication prevents unauthorized video stream requests. • IP address filtering prevents illegal access from untrusted IP addresses. • Gateway ARP protection prevents MAC address spoofing. • Structure • Supports DC 12V and PoE (802.3at) power supplies. • Cast aluminum body offers excellent heat dissipation. • 3-axis mounting bracket for various installation scenarios. • A junction box on the mounting bracket is convenient for storing tail cables. • IP67 and IK10 protection.

• High quality image with 5 MP, 1/2.7" CMOS sensor • 5 MP (2880 × 1620)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps • Ultra 265, H.265, H.264, MJPEG • Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection • Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles • Supports sound and light alarm linkage. When smart intrusion prevention is triggered, the camera links sound alarm and light linkage • 120 dB true WDR technology enables clear image in strong light scene • Supports 9:16 corridor mode • Built-in mic and speaker • Smart IR, up to 30 m (98.4 ft) IR distance • MicroSD, up to 512 GB • IP67 protection • Supports PoE power supply

• High quality image with 3MP, 1/3"CMOS sensor

• 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720) @30/25fps

• Ultra 265, H.265, H.264

• Built-in Mic & Speaker, support two-way audio, offer better interaction

• IR night vision, up to 10m (33ft) IR distance

• Support 256 G Micro SD card

• Wi-Fi connection and easy installation
